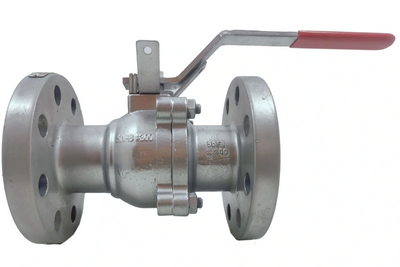

2PC FLOATING BALL VALVE - CASTING
Size Range: 1/2”NB(15mm) to 6”NB(150mm) Pressure Ratings : #150, #300, #600
Features
• Fire Safe Design
• Anti Blowout Design
• Anti Static Design
• Raised Face & RTJ as per project specification.
• Design and manufacturing as per BS EN 17292 as well as ASME B16.34.
• Ball Valves testing as per BS EN12266 part 1 / API 598 standard.
• Surface Finish as per MSS SP 55.
• Non Destructive Testing as per ASME B 16.34 if specified in project specific requirements.
• Actuator Mounting Pad as per BS EN ISO5211.
Materials
Body : ASTM A 216 WCB / A351 CF8 / A351 CF8M / A351 CF3 / A351 CF3M / A352 LCB / A890 Gr 4A / A890 Gr 5A / A890 Gr 6A.
Ball : ASTM A 216 WCB / A351 CF8 / A351 CF8M / A351 CF3 / A351 CF3M / A352 LCB / A890 Gr 4A / A890 Gr 5A / A890 Gr 6A.
Stem : ASTM A276 SS304 / A276 SS316 / A276 SS316L / A276 SS410 /A182 F51/ F53 / F55 / INCONEL.
Seat : PTFE / RPTFE / PEEK / DELRIN / DEVLON / PCTFE.
Seals & Packing : PURE GRAPHITE / PTFE
Fasteners : ASTM A 193 / ASTM A 320 for Stud & Bolt , ASTM A194 for HEX NUTS.
Operator : Lever up to 4",#300 and Gear Box above 4",#300 and above sizes.

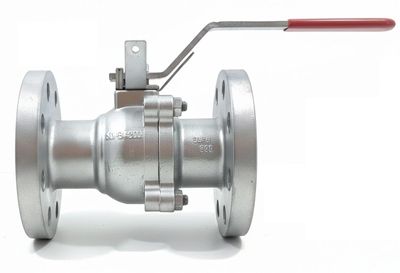

2PC FLOATING BALL VALVE - FORGED
Size Range: 1/2”NB(15mm) to 2”NB(50mm) Pressure Rating : #150, #300, #600
Features
• Fire Safe Design
• Anti Blowout Design
• Anti Static Design
• Raised Face & RTJ as per project specification.
• Design and manufacturing as per BS EN 17292 as well as ASME B16.34.
• Ball Valves testing as per BS EN12266 part 1 / API 598 standard.
• Surface Finish as per MSS SP 55.
• Non Destructive Testing as per ASME B 16.34 if specified in project specific requirements.
Materials
Body : ASTM A105 / A350 LF2 / A182 F304 / A182 F304L / A182 F316 / A182 F316L / F51/ F53 / F55 / INCONEL
Ball : ASTM A105 / A350 LF2 / A182 F304 / A182 F304L / A182 F316 / A182 F316L / F51/ F53 / F55 / INCONEL
Stem : ASTM A276 SS304 / A276 SS316 / A276 SS316L / A276 SS410 /A182 F51/ F53 / F55 / INCONEL
Seat : PTFE / RPTFE / PEEK / DELRIN / DEVLON / PCTFE
Seals & Packing : PURE GRAPHITE / PTFE
Fasteners : ASTM A 193 / ASTM A 320 for Stud & Bolt , ASTM A194 for HEX NUTS.
3PC BALL VALVE - CASTING
Size Range: 1/2”NB(15mm) to 2”NB(50mm) Pressure Rating: #150, #300, #600
Features
• Fire Safe Design
• Anti Blowout Design
• Anti Static Design
• Raised Face & RTJ as per project specification.
• Design and manufacturing as per BS EN 17292 as well as ASME B16.34.
• Ball Valves testing as per BS EN12266 part 1 / API 598 standard.
• Surface Finish as per MSS SP 55.
• Non Destructive Testing as per ASME B 16.34 if specified in project specific requirements.
Materials
Body : ASTM A105 / A350 LF2 / A182 F304 / A182 F304L / A182 F316 / A182 F316L / F51/ F53 / F55 / INCONEL
Ball : ASTM A105 / A350 LF2 / A182 F304 / A182 F304L / A182 F316 / A182 F316L / F51/ F53 / F55 / INCONEL
Stem : ASTM A276 SS304 / A276 SS316 / A276 SS316L / A276 SS410 /A182 F51/ F53 / F55 / INCONEL
Seat : PTFE / RPTFE / PEEK / DELRIN / DEVLON / PCTFE
Seals & Packing : PURE GRAPHITE / PTFE
Fasteners : ASTM A 193 / ASTM A 320 for Stud & Bolt , ASTM A194 for HEX NUTS.
3PC BALL VALVE - FORGED
Size Range: 1/2”NB(15mm) to 2”NB(50mm) Pressure Rating: #150, #300, #600
Features
• Fire Safe Design
• Anti Blowout Design
• Anti Static Design
• Threaded, Socket Weld End
• Design and manufacturing as per BS EN 17292 as well as ASME B16.34.
• Ball Valves testing as per BS EN12266 part 1 / API 598 standard.
• Surface Finish as per MSS SP 55.
• Non Destructive Testing as per ASME B 16.34 if specified in project specific requirements.
Materials
Body : ASTM A105 / A350 LF2 / A182 F304 / A182 F304L / A182 F316 / A182 F316L / F51/ F53 / F55 / INCONEL
Ball : ASTM A105 / A350 LF2 / A182 F304 / A182 F304L / A182 F316 / A182 F316L / F51/ F53 / F55 / INCONEL
Stem : ASTM A276 SS304 / A276 SS316 / A276 SS316L / A276 SS410 /A182 F51/ F53 / F55 / INCONEL
Seat : PTFE / RPTFE / PEEK / DELRIN / DEVLON / PCTFE
Seals & Packing : PURE GRAPHITE / PTFE
Fasteners : ASTM A 193 / ASTM A 320 for Stud & Bolt , ASTM A194 for HEX NUTS.
GATE VALVE
Size Range : 1/2”NB(15mm) - 12”NB(300mm) Pressure Rating: #150 & #300
Features
Heavy duty OS & Y type, bolted bonnet, rising stem non rising hand wheel, renewable seat ring for Carbon Steel Valves, integral for Stainless Steel Valves. Valves with most advanced design features providing the ultimate in reliability.
Design STD: API 600, Testing STD: API 598
Materials
Body & Bonnet : ASTM A216 Gr.WCB, ASTM A352 Gr. LCB, ASTM A351 Gr.CF8/CF8M/CF3/CF3M
Wedge & Seat Ring: WCB with 13% Chrome Overlay on seal faces, ASTM A351 Gr.CF8/CF8M/CF3/CF3M
Stem, Gland & Bonnet Bush: ASTM A276 Tp 410/ ASTM A 276 Tp 304 / 316
Yoke Sleeve: Ni Resist ASTM A439 Gr. D2
Gland Packing: Grafoil
Gasket: Spiral Wound 304 / 316 Material
Stud / Nut: ASTM A 193 Gr.B7 / ASTM A 194 Gr. 2H
Yoke & Hand wheel: Carbon Steel
Surface Protection for Carbon Steel Valves
Prime Coat: Chlorine free with modified alkyd resin unobjectionable in physiological and toxicological respects.
Additional external coating: Silver Streak Aluminum Paint.
GLOBE VALVE
Size Range:1/2”NB(15mm) - 12”NB(300mm) Pressure Rating: #150 & #300
Features
Heavy duty OS & Y type, bolted bonnet, rising stem non rising hand wheel, renewable seat ring for Carbon Steel Valves, integral for Stainless Steel Valves. Valves with most advanced design features providing the ultimate in reliability
Design STD : BS 1873, Testing STD : BS 6755 Part 1
Materials
Body & Bonnet: ASTM A216 Gr.WCB, ASTM A352 Gr. LCB, ASTM A351 Gr.CF8/CF8M/CF3/CF3M
Disc & Seat Ring: WCB with 13% Chrome Overlay on seal faces, ASTM A351 Gr.CF8/CF8M/CF3/CF3M
Stem, Gland & Bonnet Bush: ASTM A276 Tp 410/ ASTM A 276 Tp 304 / 316
Yoke Sleeve: Ni Resist ASTM A439 Gr. D2
Gland Packing: Grafoil
Gasket: Spiral Wound 304 / 316 Material
Stud / Nut: ASTM A 193 Gr.B7 / ASTM A 194 Gr. 2H
Yoke & Hand wheel: Carbon Steel
Surface Protection for Carbon Steel Valves
Prime Coat: Chlorine free with modified alkyd resin unobjectionable in physiological and toxicological respects.
Additional external coating: Silver Streak Aluminum Paint
CHECK VALVE
Size Range : 1/2”NB(15mm) - 12”NB(300mm) Pressure Rating: #150 & #300
Features
Heavy duty bolted cover with renewable seat ring. Cover mounted / Body mounted disc. Valves with most advance design features providing ultimate reliability in quality and performance.
Design STD : BS 1868, Testing STD : BS 6755 Part 1
Materials
Body & Cover : ASTM A216 Gr.WCB, ASTM A352 Gr. LCB, ASTM A351 Gr.CF8/CF8M/CF3/CF3M
Disc & Seat Ring : ASTM A216 Gr.WCB, ASTM A351 Gr.CF8/CF8M/CF3/CF3M
Gasket : Spiral Wound 304 / 316 Material
Stud / Nut : ASTM A 193 Gr.B7 / ASTM A 194 Gr. 2H
Surface Protection for Carbon Steel Valves Prime Coat: Chlorine free with modified alkyd resin unobjectionable in physiological and toxicological respects. Additional external coating: Silver Streak Aluminum Paint
Y - STRAINERS
Size Range:1/2”NB(15mm) - 12”NB(300mm) Pressure Rating: #150 & #300
Features
Y-Strainers are typically used in applications where the amount of solids to be removed is small, and where frequent clean-out is not required. Y-Strainer has the advantage of being able to be installed in either a horizontal or vertical position.
• Heavy Duty Construction, Compact design
• Bolted or threaded covers with synthetic fibre gaskets
• Perforated stainless steel screens – 1/32” to ½”,Suitable for liquid, gas or steam
• Design: Manufacturers standard. Testing as per API - 598
Materials
Body : ASTM A216 Gr.WCB, ASTM A351 Gr.CF8/CF8M/CF3/CF3M, ASTM A352 Gr.LCB / LCC
Cover : ASTM A216 Gr.WCB, ASTM A351 Gr.CF8/CF8M/CF3/CF3M, ASTM A352 Gr.LCB / LCC
Screens/Mesh : Standard stainless steel screens,
Drain Plug : As per requirement
Surface Protection for Carbon Steel Valves : Prime Coat: Chlorine free with modified alkyd resin unobjectionable in physiological and toxicological respects.
